gridpack::expnet::ExportXform33< _network > Class Template Reference

#include <export_xform33.hpp>

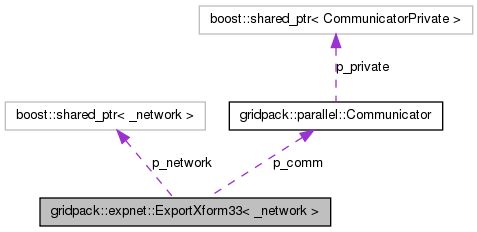

Collaboration diagram for gridpack::expnet::ExportXform33< _network >:

[legend]

List of all members.

Public Member Functions
	ExportXform33 (boost::shared_ptr< _network > network)
virtual	~ExportXform33 ()
void	writeXformBlock (std::ofstream &fout)

template<class _network>
class gridpack::expnet::ExportXform33< _network >

---

Constructor & Destructor Documentation

template<class _network>

gridpack::expnet::ExportXform33< _network >::ExportXform33

(

boost::shared_ptr< _network >

network

)

[explicit]

Constructor

template<class _network>

virtual gridpack::expnet::ExportXform33< _network >::~ExportXform33

(

)

[virtual]

Destructor

---

Member Function Documentation

template<class _network>

void gridpack::expnet::ExportXform33< _network >::writeXformBlock

(

std::ofstream &

fout

)

export text to fstream

Parameters:

	fout	stream object to export data
	text_data	vector of text strings that should be written out consecutively, based on values in text_line data data structures.

References BRANCH_CKT, BRANCH_F1, BRANCH_F2, BRANCH_F3, BRANCH_F4, BRANCH_FROMBUS, BRANCH_NUM_ELEMENTS, BRANCH_O1, BRANCH_O2, BRANCH_O3, BRANCH_O4, BRANCH_R, BRANCH_RATING_A, BRANCH_RATING_B, BRANCH_RATING_C, BRANCH_STATUS, BRANCH_SWITCHED, BRANCH_TAP, BRANCH_TOBUS, BRANCH_X, CASE_SBASE, gridpack::expnet::text_line::device_idx, gridpack::component::DataCollection::getValue(), gridpack::expnet::text_line::global_idx, MAX_STRING_SIZE, gridpack::parallel::Communicator::rank(), gridpack::expnet::text_line::text, TRANSFORMER_ANG1, TRANSFORMER_CNXA, TRANSFORMER_CODE1, TRANSFORMER_CONT1, TRANSFORMER_CR, TRANSFORMER_CX, TRANSFORMER_MAG1, TRANSFORMER_MAG2, TRANSFORMER_NMETR, TRANSFORMER_NOMV1, TRANSFORMER_NTP, TRANSFORMER_R1_2, TRANSFORMER_RMA, TRANSFORMER_RMI, TRANSFORMER_SBASE1_2, TRANSFORMER_TAB, TRANSFORMER_VMA, TRANSFORMER_VMI, TRANSFORMER_WINDV1, TRANSFORMER_WINDV2, TRANSFORMER_X1_2, and gridpack::expnet::BaseExport< _network >::writeDataBlock().

---

The documentation for this class was generated from the following file:

• export_xform33.hpp
